Dell UltraSharp 24 InfinityEdge Monitor - U2417H

Contact us
Need help? We're here for you.
Call 1-877-717-3355

Tech Specs

Quick Specs

Device Type
LED-backlit LCD monitor - 24""
Energy Class
Class A
Power Consumption (On mode)
16.93 W
Features
USB 3.0 hub
Panel Type
IPS
Aspect Ratio
16:09
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch
0.2745 mm
Brightness
250 cd/m²
Contrast Ratio
1000:01:00
Response Time
6 ms
Color Support
16.7 million colors
Input Connectors
HDMI (MHL), DisplayPort, Mini DisplayPort
Display Position Adjustments
Height, pivot (rotation), swivel, tilt
Screen Coating
Anti-glare, 3H Hard Coating
Color
Black
Dimensions (WxDxH) - with stand
21.2 in x 7.4 in x 14 in
Weight
16.20 lbs (With Packaging)
Environmental Standards
ENERGY STAR Qualified
Compliant Standards
Plug and Play, DDC/CI, RoHS, TCO Displays
Product Description
Dell UltraSharp 24 InfinityEdge Monitor U2417H
Diagonal Size
24""

General

Display Type
LED-backlit LCD monitor / TFT active matrix
Energy Class
Class A
Power Consumption (On mode)
16.93 W
Diagonal Size
24"
Viewable Size
23.8"
Built-in Devices
USB 3.0 hub
Panel Type
IPS
Aspect Ratio
16:9
Native Resolution
Full HD (1080p) 1920 x 1080 at 60 Hz
Pixel Pitch
0.2745 mm
Brightness
250 cd/m²
Contrast Ratio
1000:1
Color Support
16.7 million colors
Response Time
6 ms
Vertical Refresh Rate
56 - 76 Hz
Horizontal Refresh Rate
30 - 83 kHz
Video Bandwidth
148.5 MHz
Horizontal Viewing Angle
178
Vertical Viewing Angle
178
Screen Coating
Anti-glare, 3H Hard Coating
Backlight Technology
LED backlight
Color Temperature
5000K, 10000K
Controls & Adjustments
Brightness, contrast, sharpness, saturation, gamma correction, rotation, input select, color temperature, hue, aspect control
OSD Languages
Chinese (simplified), Brazilian Portuguese, English, German, French, Russian, Spanish, Japanese
Features
Game mode, Cinema Mode, 99% sRGB color gamut, integrated cable management, Multi-Stream transport (MST), BFR/PVC-free, Energy Gauge, Mercury free, Transition Minimized Differential Signaling (TMDS) technology, arsenic-free glass, Infinity Edge display
Color
Black
Dimensions (WxDxH)
21.2 in x 7.4 in x 14 in - with stand
Weight
11.71 lbs

Connectivity

Interfaces
  • MHL / HDMI
  • DisplayPort output (MST)
  • DisplayPort
  • Mini DisplayPort
  • USB 3.0 upstream
  • 4 x USB 3.0 downstream
  • Audio line-out

Mechanical

Display Position Adjustments
Height, pivot (rotation), swivel, tilt
Tilt Angle
-5/+21
Swivel Angle
90
Rotation Angle
180
Height Adjustment
5.1 in
Flat Panel Mount Interface
100 x 100 mm

Miscellaneous

Features
Security lock slot (cable lock sold separately), LED indicator, integrated cable management, VESA interface support, 1 USB 3.0 charging port
Included Accessories
Stand, cable management cover
Cables Included
  • 1 x SuperSpeed USB cable - 6 ft
  • 1 x Mini DisplayPort-DisplayPort cable - 6 ft
Compliant Standards
Plug and Play, DDC/CI, RoHS, TCO Displays
Security Slot Type
Kensington security slot

Power

Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
68 Watt
Power Consumption Stand by
0.5 Watt
Power Consumption Sleep
0.5 Watt

Software / System Requirements

Included Software
Drivers & Utilities, Dell Display Manager

Dimensions & Weight

Dimensions & Weight Details
  • With stand - width: 21.2 in - depth: 7.4 in - height: 14 in - weight: 11.7 lbs
  • Without stand - width: 19.1 in - depth: 1.8 in - height: 12.4 in - weight: 7 lbs

Environmental Standards

ENERGY STAR Certified
Yes

Environmental Parameters

Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 - 80% (non-condensing)

Support

When you choose Premium Support for monitors you get 24x7 support* for set-up, configuration, video card downloads & drivers, help troubleshooting issues and if needed, next business day Advanced Exchange monitor replacement*

Advanced Exchange Service
Premium Support

Essential Accessories

Get the most out of your product with these must-have accessories.

Dell UltraSharp 24 InfinityEdge Monitor - U2417H

Est. Value
$349.99
Save
$80.00
Shipping
FREE
Dell Price
269.99
back in rewards
Ships in 0–1 business days

Features


Dell UltraSharp 24 InfinityEdge Monitor: U2417H

A revolutionary viewing experience.

The Dell UltraSharp 24 Monitor allows you to see the bigger picture, without boundaries. Perfect for industry professionals looking to get the most out of their desktop experience.

Optimize your view: Feast your eyes on the thinnest borders to ever to grace all four sides of a monitor. Dell’s InfinityEdge borders, which include the bezel width and inactive black space, create an almost seamless viewing experience. With 5.3mm top, left, and right sides and a bottom border measuring only 8.3mm.

A more accurate display: Colors stay as precise as they can be at deltaE less than 2 to give you a more immersive display. And with our factory color calibration report, you’re guaranteed that every monitor has a 99% sRGB coverage at deltaE less than 2 – ensuring every color is as accurate as we claim.

Stunning at every angle: Colors remain consistent across an ultrawide viewing angle, guaranteeing a dazzling display no matter how you view it.

Product Brochure: Download the PDF file for the Dell UltraSharp 24 InfinityEdge Monitor U2417H

Dell UltraSharp 24 InfinityEdge Monitor: U2417H

Designed with you in mind

Quickly adjust your monitor to comfortably fit the way you work.

Vividly clear: Immerse yourself in cohesive multi-monitor view with super thin black borders and the thinnest bezel width to date in between two displays on all sides.

Unmatched versatility: Enjoy full adjustability to pivot, tilt, and swivel your monitor to the position and height you desire. And with HDMI 1.4 (MHL 2.0), DP 1.2, mini-DP 1.2, DP-out, 4 USB 3.0, and audio line-out ports, connecting to all your peripherals at once is both easy and convenient.
Dell UltraSharp 24 InfinityEdge Monitor: U2417H

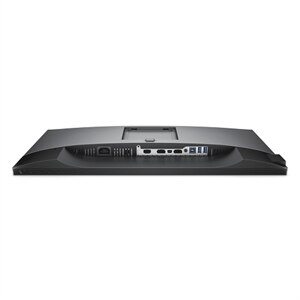

Ports and Slots:
1. AC power | 2. HDMI/MHL | 3. DisplayPort (in) | 4. Mini DisplayPort | 5. DisplayPort (out) | 6. Audio line (out) | 7. USB upstream | 8. USB downstream

Cables included:
1. Mini DisplayPort to DisplayPort Cable (1.8m)
2. USB 3.0 Upstream cable (1.8m)

Peace of mind – guaranteed

Enjoy peace of mind with our Premium Panel Guarantee and minimize downtime with Advanced Exchange Service.
Dell UltraSharp 24 InfinityEdge Monitor: U2417H

Premium Panel Guarantee

The Dell Premium Panel Guarantee allows a free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found.


Dell U2417H Monitor - Expert Support

Expert Support

Relax knowing that your Dell monitor comes with next business day Advanced Exchange if your warranty issue can’t be resolved over the phone. Get a higher level of support with Premium Support for monitors which includes 24x7 access to expert technicians for set-up, configuration, troubleshooting, and more, as well as next business day Advanced Exchange.



Awards & Reviews

Dell UltraSharp 24 InfinityEdge Monitor: U2417H

Dell U2417H

Best of the Year 2016 Award Winner - PCMag

Learn More


Dell UltraSharp 24 InfinityEdge Monitor: U2417H

Dell U2417H: 4.5/5 rating

"Its combination of a great design, fantastic image quality, good connectivity and a versatile stand make it ideal for all business and home use." — Trusted Reviews
