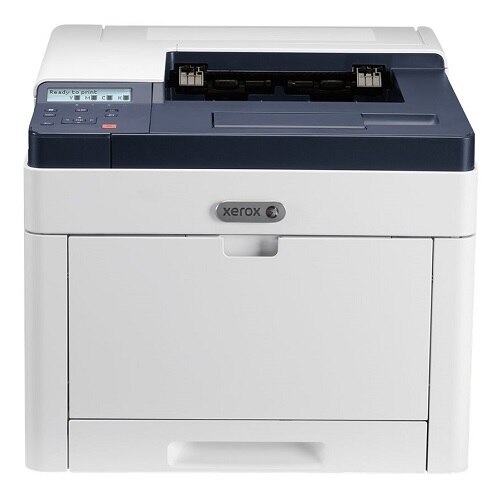

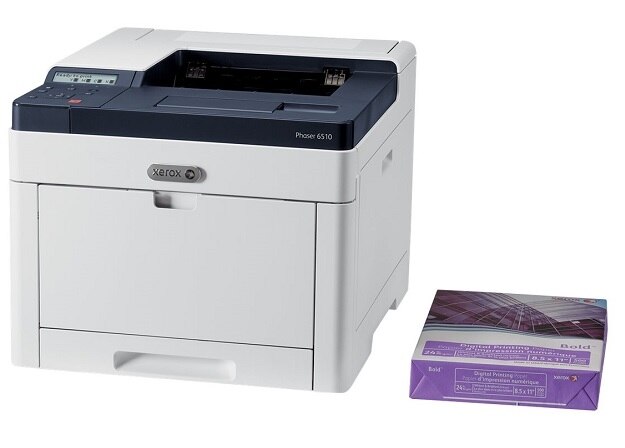

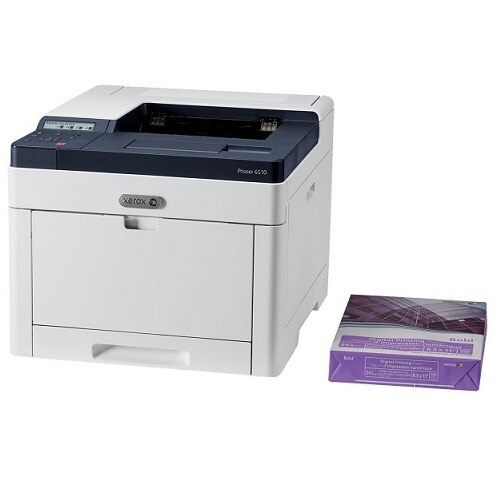

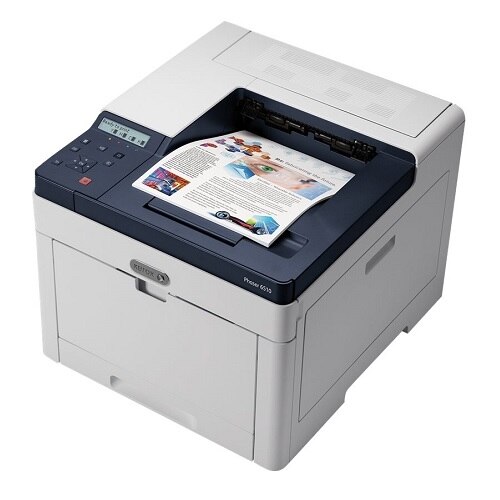

Xerox Phaser 6510 Color Laser Printer

Chat or Call
Need help with finding a Dell product? We're here for you.

Tech Specs

Quick Specs

Printer Type
Workgroup printer - laser - color
Bundled Services
1 year Xerox Total Satisfaction Guarantee
Weight
52.47 lbs
Media Size Class
A4/Legal
Max Media Size
Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Min Media Size (Custom)
3 in x 5 in
Max Media Size (Custom)
8.5 in x 14 in
Print Speed
Up to 30 ppm - B/W - Letter A Size (8.5 in x 11 in) ¦ Up to 30 ppm - color - Letter A Size (8.5 in x 11 in) ¦ Up to 28 ppm - B/W - A4 (8.25 in x 11.7 in) ¦ Up to 28 ppm - color - A4 (8.25 in x 11.7 in) ¦ Up to 24 ppm - B/W - Legal (8.5 in x 14 in) ¦ Up to 24 ppm - color - Legal (8.5 in x 14 in) ¦ Up to 18 ppm - B/W duplex - Letter A Size (8.5 in x 11 in) ¦ Up to 18 ppm - color duplex - Letter A Size (8.5 in x 11 in) ¦ Up to 19 ppm - B/W duplex - A4 (8.25 in x 11.7 in) ¦ Up to 19 ppm - color duplex - A4 (8.25 in x 11.7 in) ¦ Up to 17 ppm - B/W duplex - Legal (8.5 in x 14 in) ¦ Up to 17 ppm - color duplex - Legal (8.5 in x 14 in)
Max Resolution (B&W)
1200 x 2400 dpi
Max Resolution (Color)
1200 x 2400 dpi
Automatic Duplexing
Yes
Interface
Gigabit LAN, Wi-Fi(n), USB 3.0
AirPrint Enabled
Yes
Processor
733 MHz
RAM Installed (Max)
1 GB
Language Simulation
PCL 5E, PostScript 3, PCL 6, PDF, TIFF
Media Type
Envelopes, labels, plain paper, bond paper, recycled paper, card stock, lightweight glossy card stock, glossy card stock, punched paper, preprinted paper
Total Media Capacity
300 sheets
Media Handling
250-sheet input tray, 50-sheet bypass tray
Monthly Duty Cycle (max)
50000 pages
Recommended Monthly Volume
3000 pages
Networking
Print server
Power
AC 120 V
System Requirements
Linux, Microsoft Windows 2000 Server, SuSe Linux, HP-UX 11i v2, Microsoft Windows Server 2003, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Oracle Solaris 10, IBM AIX 5, Microsoft Windows Server 2012, Red Hat Fedora Core 12 - 15, Oracle Solaris 9, Apple MacOS X 10.9 or later, Microsoft Windows 7 / 8 / 10
Manufacturer Warranty
1 year warranty
Dimensions (WxDxH)
16.5 in x 19 in x 13.7 in

General

Printer Type
Workgroup printer - laser - color
Bundled Services
1 year Xerox Total Satisfaction Guarantee

Printer

Print Speed
  • Up to 30 ppm - B/W - Letter A Size (8.5 in x 11 in)
  • Up to 30 ppm - color - Letter A Size (8.5 in x 11 in)
  • Up to 28 ppm - B/W - A4 (8.25 in x 11.7 in)
  • Up to 28 ppm - color - A4 (8.25 in x 11.7 in)
  • Up to 24 ppm - B/W - Legal (8.5 in x 14 in)
  • Up to 24 ppm - color - Legal (8.5 in x 14 in)
  • Up to 18 ppm - B/W duplex - Letter A Size (8.5 in x 11 in)
  • Up to 18 ppm - color duplex - Letter A Size (8.5 in x 11 in)
  • Up to 19 ppm - B/W duplex - A4 (8.25 in x 11.7 in)
  • Up to 19 ppm - color duplex - A4 (8.25 in x 11.7 in)
  • Up to 17 ppm - B/W duplex - Legal (8.5 in x 14 in)
  • Up to 17 ppm - color duplex - Legal (8.5 in x 14 in)
Connectivity Technology
Wired
Interface
Gigabit LAN, Wi-Fi(n), USB 3.0
AirPrint Enabled
Yes
Max Resolution (B&W)
1200 x 2400 dpi
Max Resolution (Color)
1200 x 2400 dpi
Automatic Duplexing
Yes
PostScript Support
Standard
First Print Out Time B/W
12 sec
First Print Out Time Color
12 sec
Language Simulation
PCL 5E, PostScript 3, PCL 6, PDF, TIFF
Fonts Included
  • 136 x PostScript
  • 88 x PCL
Media Handling
250-sheet input tray, 50-sheet bypass tray

Processor

Processor
733 MHz

RAM

RAM Installed (Max)
1 GB

Media Handling

Media Type
Envelopes, labels, plain paper, bond paper, recycled paper, card stock, lightweight glossy card stock, glossy card stock, punched paper, preprinted paper
Media Size Class
A4/Legal
Max Media Size
Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Min Media Size (Custom)
3 in x 5 in
Max Media Size (Custom)
8.5 in x 14 in
Media Sizes
Letter A Size (8.5 in x 11 in), Legal (8.5 in x 14 in), A4 (8.25 in x 11.7 in)
Media Weight
60 g/m² - 220 g/m²
Total Media Capacity
300 sheets
Media Feeders
  • 1 x automatic - 250 sheets - Legal (8.5 in x 14 in) weight: 60 g/m² - 220 g/m²
  • 1 x automatic - 50 sheets - Legal (8.5 in x 14 in) weight: 60 g/m² - 220 g/m²
Max Media Capacity
850 sheets
Output Trays Capacity
150 sheets

Duty Cycle

Monthly Duty Cycle (max)
50000 pages
Recommended Monthly Volume
3000 pages

Networking

Networking
Print server
Remote Management Protocol
SNMP 3, IPP, HTTP, HTTPS
Security Protocols & Features
LDAP, Apple Bonjour, TLS, IPsec, 802.1x, IP filtering, Wi-Fi Direct

Expansion / Connectivity

Connections
  • 1 x USB 3.0 - 9 pin USB Type B
  • 1 x Gigabit LAN - RJ-45

Miscellaneous

Consumables Included

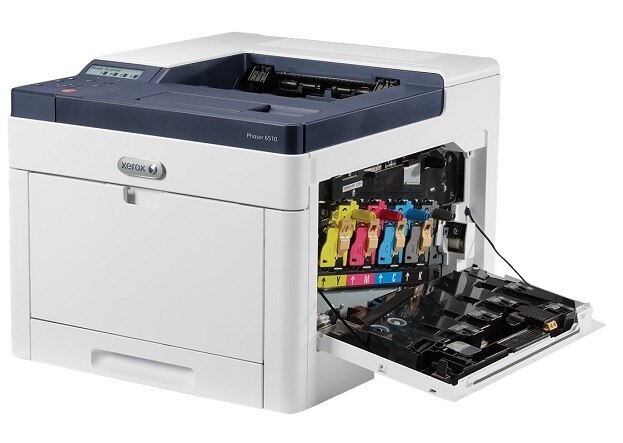

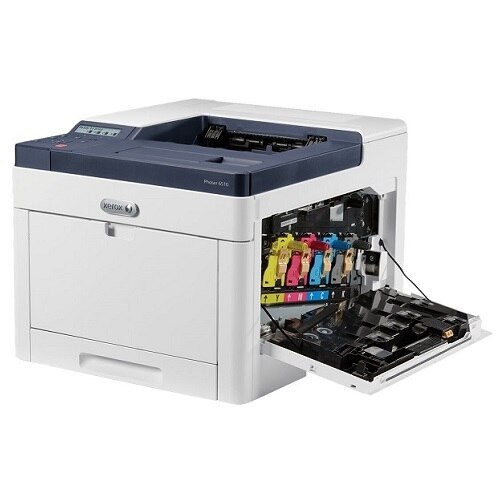

  • 1 x toner cartridge (black) - up to 1500 pages ISO/IEC 19752
  • 1 x toner cartridge (cyan) - up to 1000 pages ISO/IEC 19752
  • 1 x toner cartridge (yellow) - up to 1000 pages ISO/IEC 19752
  • 1 x toner cartridge (magenta) - up to 1000 pages ISO/IEC 19752
Compliant Standards
GS, NOM, Directive 1999/5/EC, FCC Part 68, UL 60950-1, FCC Part 15 A, Directive 2004/108/EC, Directive 2006/95/EC, CSA C22.2 No. 60950-1-07 Second Edition, EcoLogo, EAC

Power

Power Device
Power supply - internal
Voltage Required
AC 120 V
Frequency Required
60 Hz
Power Consumption Operational
380 Watt
Power Consumption Stand by
41 Watt
Power Consumption Sleep
0.9 Watt

Software / System Requirements

OS Required
Linux, Microsoft Windows 2000 Server, SuSe Linux, HP-UX 11i v2, Microsoft Windows Server 2003, Red Hat Enterprise Linux, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2008, Oracle Solaris 10, IBM AIX 5, Microsoft Windows Server 2012, Red Hat Fedora Core 12 - 15, Oracle Solaris 9, Apple MacOS X 10.9 or later, Microsoft Windows 7 / 8 / 10

Environmental Standards

Blue Angel
Yes
ENERGY STAR
Yes

Manufacturer Warranty

Service & Support
Limited warranty - 1 year - on-site

Environmental Parameters

Min Operating Temperature
41 °F
Max Operating Temperature
89.6 °F
Humidity Range Operating
15 - 85%
Sound Emission (Idle)
24.9 dBA
Sound Emission (Operating)
51.9 dBA

Dimensions & Weight

Width
16.5 in
Depth
19 in
Height
13.7 in
Weight
52.47 lbs

Dimensions & Weight (Shipping)

Width (Shipping)
22.8 in
Depth (Shipping)
25 in
Height (Shipping)
19.9 in
Weight (Shipping)
66.14 lbs

Warranty

If your covered product fails, it will be repaired or replaced. No hassles, deductibles or hidden fees. Coverage begins after the manufacturer's labor warranty expires, so you are never left unprotected.


Media Essentials

Get the most out of your product with these must have accessories.


Accessories

Must have products for your projector

Xerox Phaser 6510 Color Laser Printer

Starting at Price
$449.00
Total Savings
$250.00
Shipping
FREE
Dell Price
199
Dell Business Credit
As low as $15 /mo.^ | Apply
back in rewards
Ships in 0–1 business days

Features


Xerox Phaser 6510 Color Laser Printer A4/Legal




Stunning resolution

Smaller toner particles translate to finer details, and with 1200 x 2400 native dpi, your printed materials will capture attention and project polish and panache.

Xerox Phaser 6510 Color Laser Printer A4/Legal




Outstanding performance

With a monthly duty cycle of 50,000 pages and print speeds up to 30 ppm, both devices are perfectly positioned to support the demands of your growing business.

Xerox Phaser 6510 Color Laser Printer A4/Legal




Stay secure

Keep your sensitive documents away from unintended recipients with the latest security features, including IPsec, SNMPv3, IP filtering and secure print.
