Dell USB-C Mobile Adapter - DA300

Chat or Call
Need help with finding a Dell product? We're here for you.

Tech Specs

Quick Specs

Product Type
Cables & Adapter
Docking Interface
USB-C
Video Interfaces
VGA
Dimensions (WxDxH)
2.75 in x 1 in
Weight
2.82 oz
Networking
Gigabit Ethernet
Designed For
Latitude 3390 2-in-1, 5290, 5290 2-in-1, 5490, 5590, 7290, 7390, 7490

General

Product Type
Adapter
Width
2.7 in
Depth
2.75 in
Height
1 in
Weight
2.82 oz

Networking

Data Link Protocol
Gigabit Ethernet

Expansion / Connectivity

Interfaces
  • USB-A
  • 1 x USB-C
  • 1 x display / video - HDMI
  • 1 x display / video - VGA
  • 1 x display / video - DisplayPort
  • 1 x network - Ethernet 1000 - RJ-45

Miscellaneous

Cables Included
1 x USB-C cable - integrated - 4.7 in
Features
Preboot Execution Environment (PXE) support, MAC address pass-through, bus powered
Compliant Standards
Plug and Play

System Requirements

OS Required
Apple MacOS, Microsoft Windows 7 / 8 / 8.1 / 10

Compatibility Information

Designed For
Dell Latitude 3390 2-in-1, 5290, 5290 2-in-1, 5490, 5590, 7290, 7390, 7490

Accessories

Get all of the accessories you need and more

Dell USB-C Mobile Adapter - DA300

Starting at Price
$99.99
Total Savings
$10.00
Shipping
FREE
Dell Price
89.99
Dell Business Credit
As low as $15 /mo.^ | Apply
back in rewards
Ships in 0–1 business days

Features


Most comprehensive, compact 6-in-1 USB-C adapter

Featuring the widest variety of port options available including HDMI, DP, VGA, Ethernet, USB-C and USB-A, the Dell USB-C Mobile Adapter - DA300 offers seamless video, network, and data connectivity, in a neat, compact design.



Most comprehensive, compact 6-in-1 USB-C adapter

Crisp 4K resolution at 60Hz and fast SuperSpeed USB 10 Gbps data transfer rate

Connect to high resolution displays without compromising on performance, thanks to the USB-C Mobile Adapter’s ability to support 4K resolution at 60Hz. Simply plug in your PC to a monitor or projector via DisplayPort or HDMI 2.0. Using legacy video ports is also a breeze with the adapter’s readily available VGA port.
The USB-C and USB-A downstream ports let you connect other supported peripherals and enjoy faster file transfers with SuperSpeed USB 10Gbps data transfer speeds.

Innovative design

Innovative design

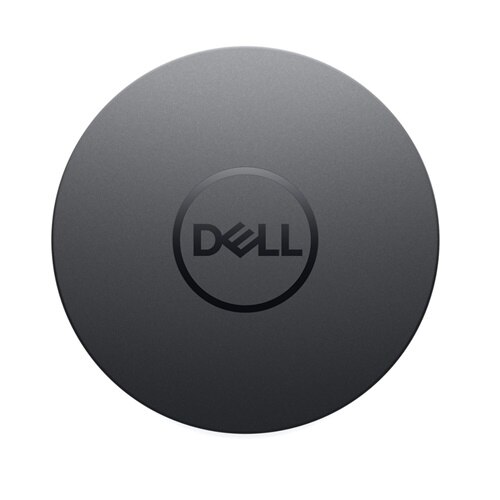

The small, round-shaped adapter fits neatly in your bag, while the concealed cable can be extended or retracted by rotating the top and bottom cover of the adapter, for easy storage. The longer coaxial cable offers flexibility to connect to various form factors from clamshells to 2-in-1s to detachables, providing enhanced signal quality for stable connectivity wherever your busy day takes you.

Easy plug and play. Best with Dell systems

Easy to use, the adapter is ready to go when you plug it in - no installation of external drivers is necessary. Pair your adapter with Dell systems to enjoy Business Class features such as MAC address pass-through, PXE Boot, and Wake-On-LAN. It works with most operating systems, including Windows and MAC.
Easy plug and play. Best with Dell systems

Additional Product Notes

1. Only one video output is supported at a time.
2. Available with select PC models (with support for DisplayPort Alt-Mode 1.3 & above standard) when connected to displays that offer 4K resolution at 60Hz. Otherwise, default
resolution will be 4K at 30Hz.
3. a) When adapter is connected to a Thunderbolt or 15W USB-C (DisplayPort Alt-mode) port – two downstream USB-C and USB-A ports with USB3.1 Gen 2 file transfer rate of up
to 10 Gbps is supported.
b) When adapter is connected to a 7.5W USB-C (DisplayPort Alt-mode) port – only one of the two downstream USB-C and USB-A ports with USB2.0. file transfer rate up to 480
Mbps is supported on a 1st come 1st serve basis (the peripheral connected first to either the USB-C or USB-A port is supported)
4. USB mice, keyboards, mice dongles, select SSDs and flash drives.
5. Dell Business Class Features include:
PXE Boot – Pre eXecution Environment Boot allows a computer to be troubleshot remotely when connected to the network via its network card. Wake-On-LAN – Starts your PC
remotely using the signal over your network.
MAC address pass-through – MAC address pass through recognizes only a unique MAC address entered in the system’s BIOS (Basic Input/Output System) by overriding the
adapter MAC address every time your laptop is connected to the network, ensuring that your PC’s MAC address stays the same no matter which USB-C adapter you use.
6. Tested with macOS High Sierra 10.13.4 and macOS Sierra 10.12.6.
