Dell Business Thunderbolt Dock - TB16 with 240W Adapter

Chat or Call
Need help with finding a Dell product? We're here for you.
Call 888-346-2289

Tech Specs

Quick Specs

Product Type
Docking station
Docking Interface
Thunderbolt
Video Interfaces
VGA, HDMI, DP, Mini DP, Thunderbolt
Dimensions (WxDxH)
5.7 in x 5.7 in x 2 in
Weight
25.39 oz
Networking
Gigabit Ethernet
Power
Power adapter 240 Watt AC 120/230 V (50/60 Hz)

General

Product Type
Docking station
Width
5.7 in
Depth
5.7 in
Height
2 in
Weight
25.39 oz

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity

Interfaces
  • 2 x USB 2.0 - 4 pin USB Type A
  • 3 x SuperSpeed USB 3.0 - 9 pin USB Type A
  • 1 x display / video - HDMI - 19 pin HDMI Type A
  • 1 x display / video - DisplayPort - 20 pin DisplayPort
  • 1 x network - RJ-45
  • 1 x headset - output - mini-phone 3.5 mm
  • 1 x speakers - output - mini-phone 3.5 mm
  • 1 x video - VGA - 15 pin D-Sub (DB-15)
  • 1 x Thunderbolt 3 - Thunderbolt - 24 pin USB-C
  • 1 x display / video - DisplayPort - Mini DisplayPort

Miscellaneous

Cables Included
1 x Thunderbolt cable - 1.6 ft
Features
Security lock slot (cable lock sold separately), LED indicator, up to 3 monitors support
Security Slot Type
Kensington security slot

Power

Power Device
Power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
240 Watt

System Requirements

OS Required
Ubuntu Linux 14.04 SP1, Microsoft Windows 7 / 8 / 8.1 / 10, Red Hat Enterprise Linux 7.2

Thunderbolt Accessories

Thunderbolt Accessories

Dell Business Thunderbolt Dock - TB16 with 240W Adapter

Starting at Price
$369.99
Total Savings
$84.00
Shipping
FREE
Dell Price
285.99
Dell Business Credit
As low as $15 /mo.^ | Apply
back in rewards
Ships in 0–1 business days

Features

One dock. One cable. Ultimate Performance.

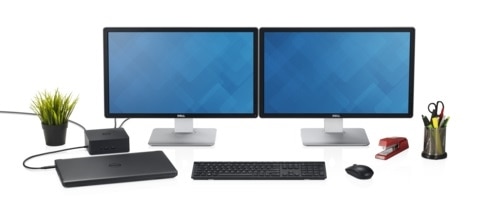

The Dell Business Thunderbolt Dock - TB16 with 240W Adapter with Intel® Thunderbolt 3 technology is the ultimate docking solution, designed for power users and traditional workstation clients, creating the ability to connect up to three FHD displays, two 4K displays, or one 5K display at 60Hz. Data transfers up to 40 Gbps allow lightning-fast transfers of larger files such as video editing files.
Dell Business Thunderbolt Dock - TB16 with 240W Adapter

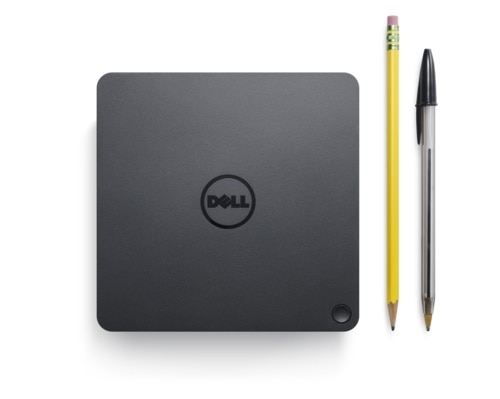

Small footprint and big flexibility

The Dell Business Thunderbolt Dock - TB16 with 240W Adapter is small in size—just 5.7 x 5.7 x 2 inches (145 x 145 x 51mm). By connecting one cable to your laptop, you can get access to a wide variety of ports, enhancing productivity.
Dell Business Thunderbolt Dock - TB16 with 240W Adapter

One source for power

The Dell Business Thunderbolt Dock - TB16 with 240W Adapter can provide power to your laptop (at 19.5V) and can also provide up to 60W of power to attached Thunderbolt™ 3 peripherals. Dell Precision, Latitude or XPS notebooks with a Thunderbolt™ 3 port can receive up to 130W of power.

*Precision 7510/7520/7530/7710/7720/7730 require more power than 130W, so when docked with the Dell Business Thunderbolt Dock TB16, the workstation power adapter needs to be plugged in for optimal operation. For the best experience with Precision 7530 or 7730, choose the Dell Precision Thunderbolt Dock TB18DC which comes with a dual USB-C connector that provides up to 210W power delivery, so you no longer need an additional power adapter to charge your Precision 7530 or 7730.

For more information about compatible system types, please consult the following page:
Dell Thunderbolt (TB16) Information and Specifications

Connections and Features:

Supports 3 displays
Two USB 2.0 ports
Three USB 3.0 ports
Thunderbolt 3 (USB-C) port
Speaker output (rear)
Combo audio (front)
Gigabit Ethernet
Kensington Lock Slot
7.4 mm DC-IN Power Input

What's in the Box

Dell Business Thunderbolt Dock TB16

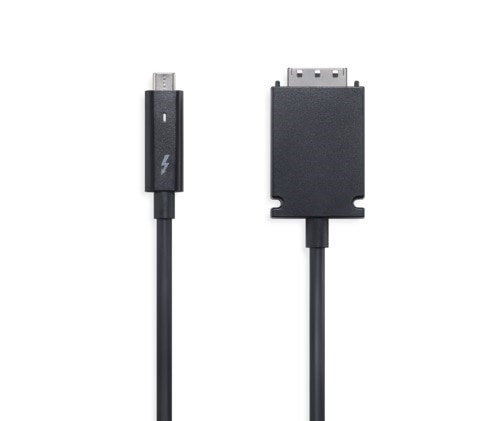

USB Type-C Thunderbolt™ Cable
240W AC Adapter
