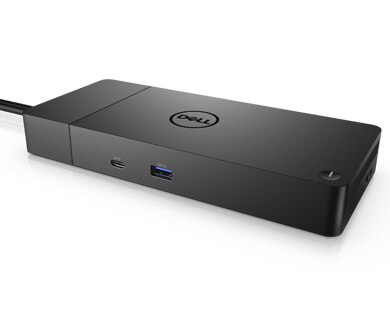

Dell Dock – WD19S 130W
WD19S is a simplified version of WD19 without 3.5mm ports.
Tech Specs
Quick Specs
General
Up to QHD - 60 Hz (Three Displays)
Video
Up to QHD - 60 Hz (Three Displays)
Networking
Expansion / Connectivity
- 2 x display / video - DisplayPort 1.4 - 20 pin DisplayPort
- 1 x display / video - HDMI 2.0 - 19 pin HDMI Type A
- 1 x USB-C Multifunction DisplayPort
- 1 x USB-C 3.1 Gen 2 – 24 pin USB Type C
- 2 x USB-A 3.1 Gen 1 - 9 pin USB Type A
- 1 x USB-A 3.1 Gen 1 with PowerShare – 9 pin USB Type A
- 1 x network - Ethernet 1000 - RJ-45
Miscellaneous
Power
System Requirements
Manufacturer Warranty
Warranty
Rest easy knowing that your system is backed by Dell's award-winning support package.
Dell Dock – WD19S 130W
wd19ds90sap
Features
Industry Standard Compatibility
Dell Commercial Docks offer the greatest compatibility across Dell Commercial laptops. WD19S is also compatible with notebooks from other manufacturers such as HP and Lenovo which support industry standards for USB-C docking.i
For functional limitations with notebooks from other manufactures in comparison to Dell Commercial notebooks, please see this support article.
Dell Dock WD 19S 130W Spec Sheet
Guide to choosing the right dock
Dell docking compatibility guide
Power your connections
Power your day: Dell ExpressCharge allows you to charge up to 80% in one houri, making it the most efficient way to manage the workday.
Energize your workload: Get more done, even faster with Dell ExpressCharge Boost – a feature that provides up to a 35% charge in just 20 minutesi.
Unmatched charging: Increase your power delivery and charge even faster with a dock that delivers up to 90W of power with 130W power adapter.
Built for the future

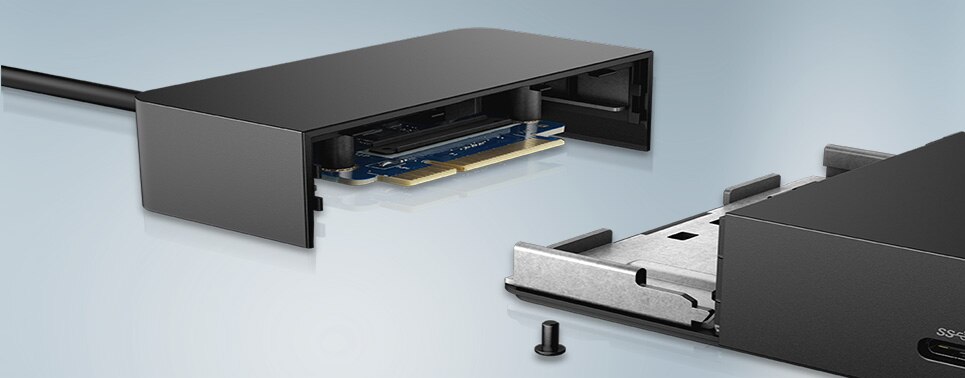

Mix and match: Evolve as your needs change with our most versatile dock. The future-ready design lets you swap out modules with ease if you need to do field replacements or upgrade your systems.
Ultimate connectivity: USB-C connectivity makes it easier than ever to deliver power, data, audio and video in one convenient cable, no matter what system you use.
Clean and clutter-free: Stay productive by mounting your dock behind your monitor or under your desk with the optional, secure VESA mount, that offers complete flexibility with the built-in one-meter cable.
Information in a flash: With data transfer speeds of up to 10Gbps, you can stay productive when connected to all your devices.
Optimize your workspace
| Smooth and seamless: Work without disruptions utilizing a single firmware on our most manageable docks ever. Plus, with Dell Client Command Suite and Microsoft System Center Configuration Manager, you can quickly and easily update your firmware without rebooting your dock. Secure manageability: Keep your information safe with MAC Address pass-thru and remote port-disablement. Plus, with features like PXE Boot, Wake-on-LAN and more, it’s easier than ever to stay productive while managing your dock. |

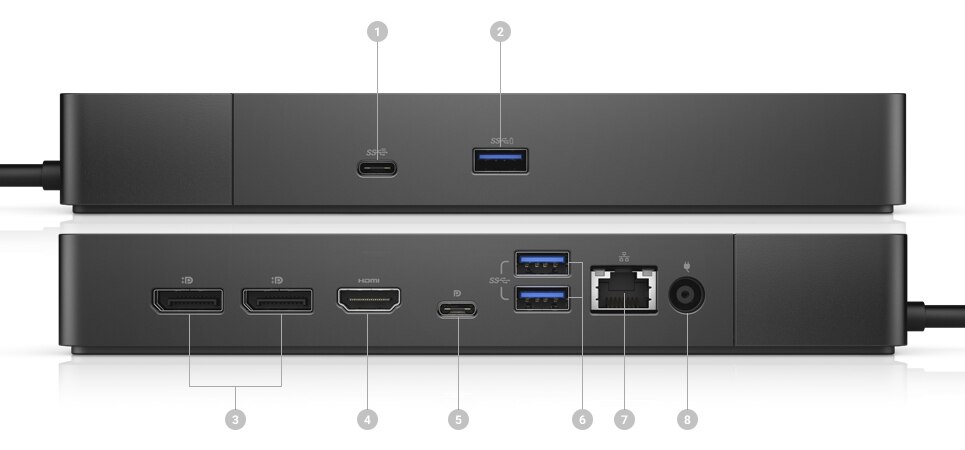

Connectivity Options
Ports & Slots:
1. USB-C 3.1 Gen 2
2. USB-A 3.1 Gen 1 with PowerShare
3. DisplayPort 1.4 (x2)
4. HDMI 2.0b
5. USB-C Multifunction DisplayPort
6. Dual USB-A 3.1 Gen 1
7. Gigabit Ethernet RJ45
8. Power In
All of the dock support, none of the hassle
| When you choose Premium Support for docking stations you get 24x7 support for configuration, interoperability, and software support. If needed, get next business day Advanced Exchange Service docking station replacement*. *Advanced Exchange Service: Dell will send you a replacement docking station the next business day in most cases, if deemed necessary after phone/online diagnosis. Shipping times may vary by location. Fee charged for failure to return defective unit. |
Advanced Exchange Service
Your dock comes with a 3-year Advanced Exchange Servicei so that if a replacement becomes necessary, it will be shipped to you the next business day during your 3-year Limited Hardware Warrantyi.
Accessories
Complete your experience with accessories designed to make the most of your Dell Dock.
Dell premier multi-device wireless keyboard and mouse – KM7321W
Multi-task seamlessly across 3 devices with this premium full-sized keyboard and sculpted mouse combo with programmable shortcuts and 36 months battery lifei
Dell ultrasharp 27 4k usb-c monitor - U2720Q
Experience true color and striking clarity on this 27" 4K monitor with a wide color coverage. This VESA DisplayHDR™ 400 monitor features virtually borderless InfinityEdge and USB-C connectivity with up to 90W power delivery.
Dell docking station mounting kit - MK15
Mount your Dell Commercial Dock behind your compatible monitor or under your desk to create a clutter-free work environment.
| Boost your PC’s power up to 90W with ExpressCharge on the world’s most powerful and first modular USB-C dock with a future-ready design.* WD19S is a simplified version of WD19 without 3.5mm ports. |
